Heights are limited to 60' due to shipping, installation and design considerations. If higher spans are required, please contact Engineering Services to evaluate your design.
Notes
Calculated properties are based on AISI S100-16 (2020) w/S2-20 - North American Specification for CFS Structural Members.
Some profiles and sizes may not be available in all markets. Contact your ClarkDietrich Sales Representative for availability on custom systems.
Loads have NOT been reduced for strength or deflection checks. Full lateral load is applied.

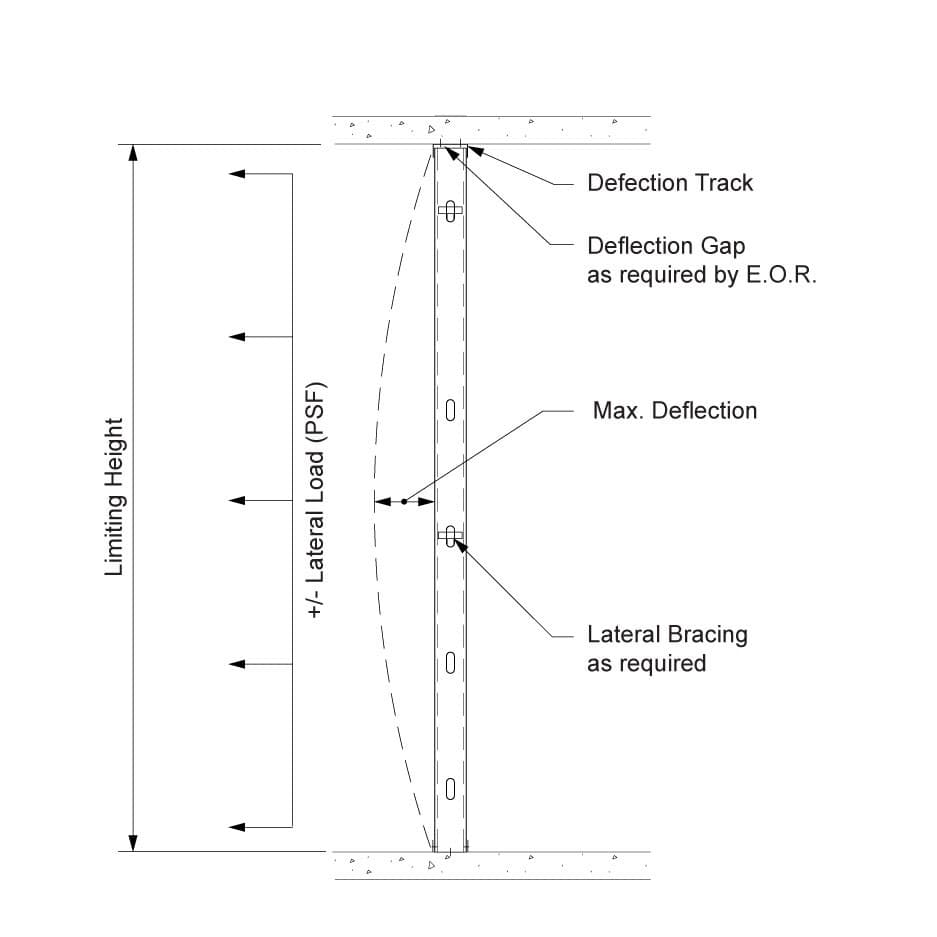

Limiting heights are based on continuous support of each flange over the full length of the stud.
Limiting heights are based on steel properties only (non-composite).
Web crippling checks are based on end-one flange loading condition using 1-inch end bearing.
Where limiting heights are followed by "e", web stiffeners are required.
* Heights are limited to 60' due to shipping, installation and design considerations. If higher spans are required, please contact Engineering Services to evaluate your design.
